The keyed eval measured retrieval recall@8 at 18/24 (75.0%), the answer rate at 15/24 (62.5%), refusal of unanswerable questions at 6/6, and citation precision and faithfulness at 13/15 and 12/15.

Ask a hosted reader a question about a PDF corpus and get claims whose quotes are verbatim, highlighted on the page, with an inspectable retrieval trace and a calibrated refusal.

(Python 3.12, FastAPI, PostgreSQL 16 + pgvector, React + Vite, PDF.js, ONNX Runtime)

Live

Ask the seeded Sentence-BERT paper why SBERT is more efficient than a BERT cross-encoder.

marginalia-ui.onrender.com marginalia-api-4pvl.onrender.com View the code

What to expect on the free instance

The free instance sleeps after 15 minutes idle and takes about a minute to wake.
The hosted corpus is five papers and 260 chunks; a question outside it is refused.
A warm answer takes 17–25 s on the free instance.
A visitor upload is capped at 25 MB and 80 pages, sent to a third-party free-tier model, and deleted after 24 hours.

Five-step walkthrough

01 / What it is

What it is

A Python 3.12 FastAPI service with PostgreSQL 16 and pgvector, served with a React reader.

Ingest refuses a PDF whose SHA-256 differs from corpus.lock.json; retrieval fuses embeddings and lexical search, then reranks; the answer path keeps a claim when its quote appears in the cited chunk and drops it otherwise.

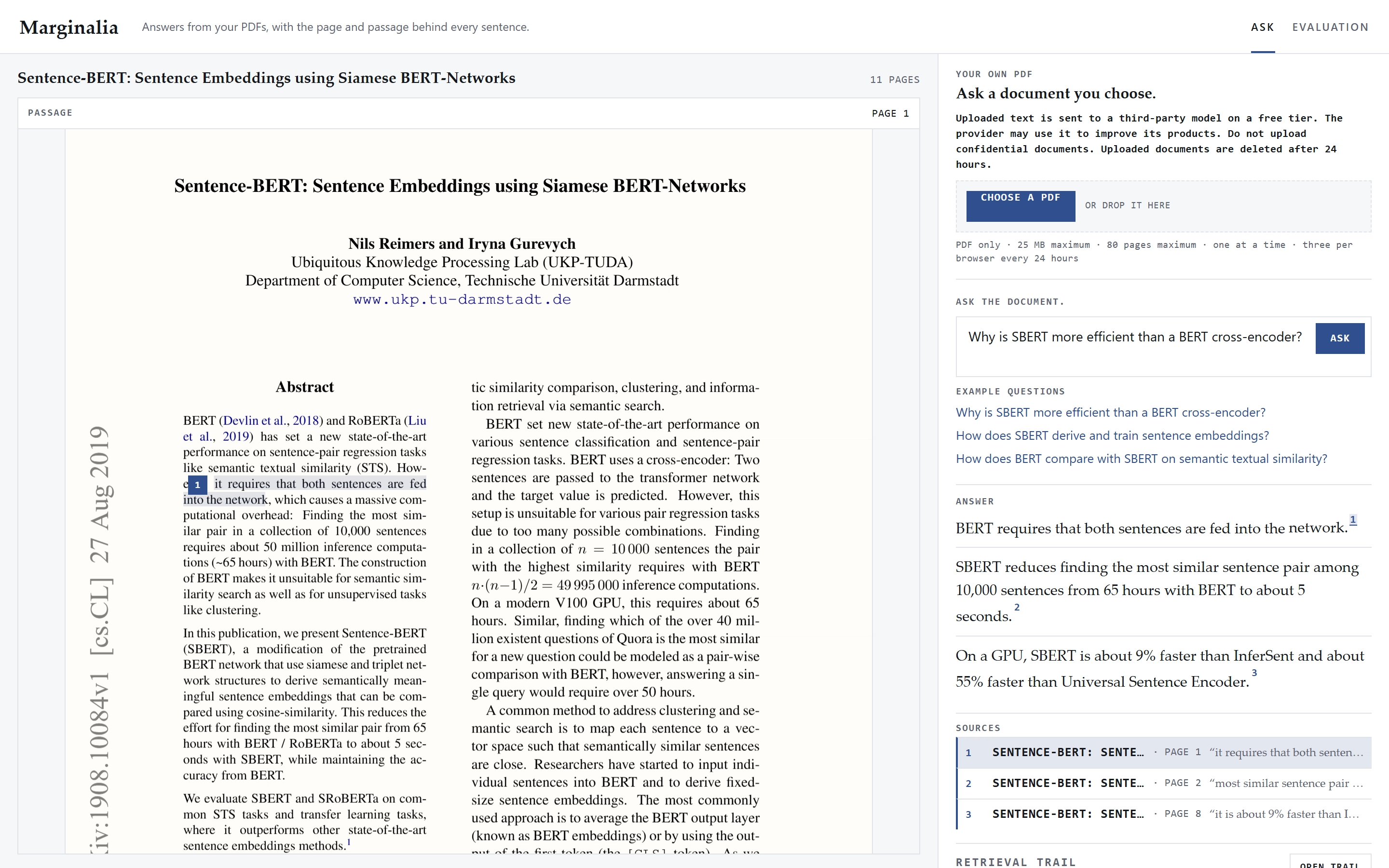

Page 1 of the Sentence-BERT paper with citation 1 selected: the quoted sentence is marked in the page text with a margin marker, the matching source row is selected, and three claims sit in the answer pane. — Sentence-BERT paper page 1 with citation 1 selected: the quote is marked in the page text, and the answer pane lists three claims above their sources.

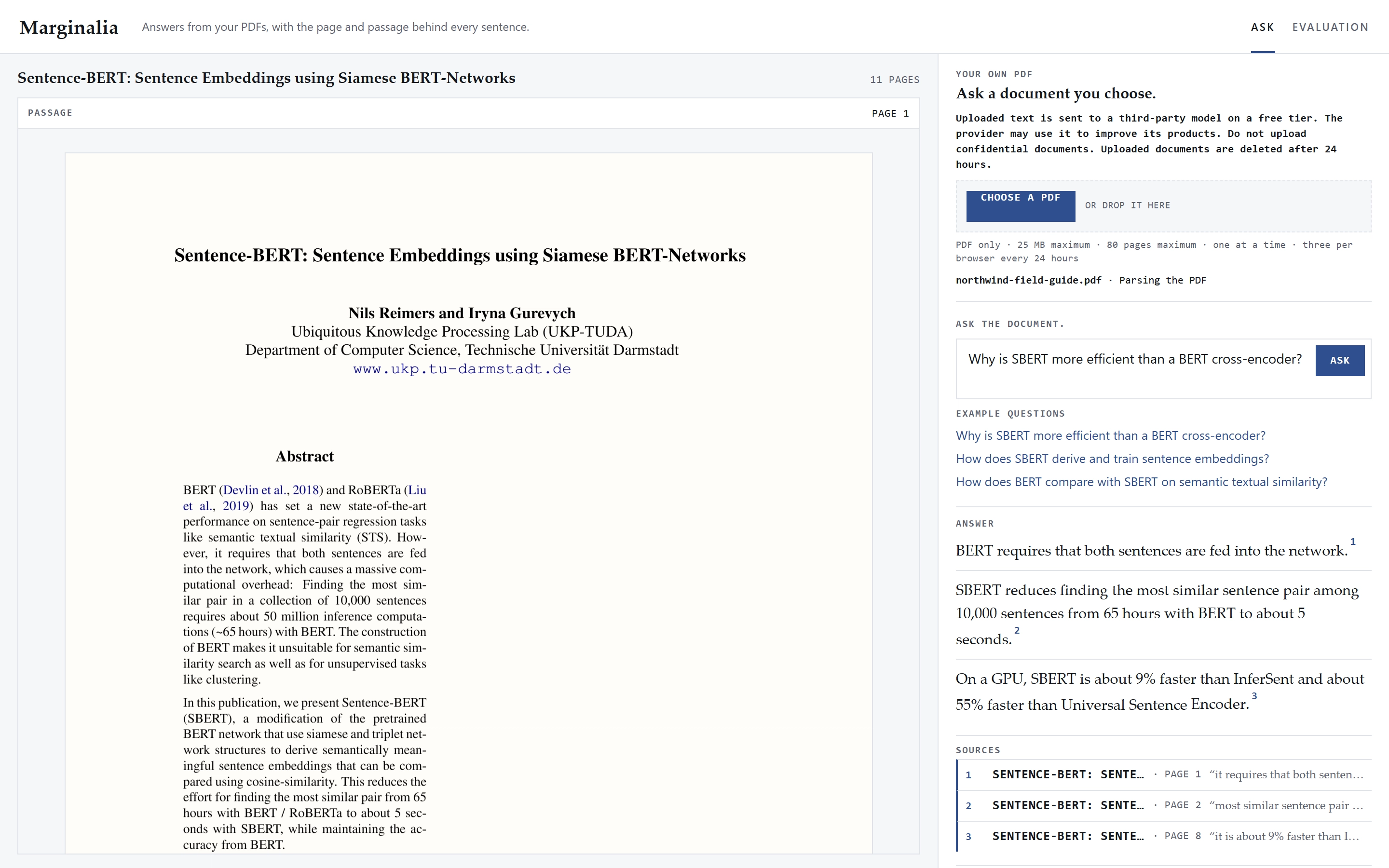

Visitor upload panel: northwind-field-guide.pdf with the stage line reading Parsing the PDF, beneath the disclosure, the drop zone and the 25 MB and 80-page limits. — Visitor upload panel: northwind-field-guide.pdf at the Parsing the PDF stage, beneath the model disclosure, the drop zone and the 25 MB and 80-page caps.

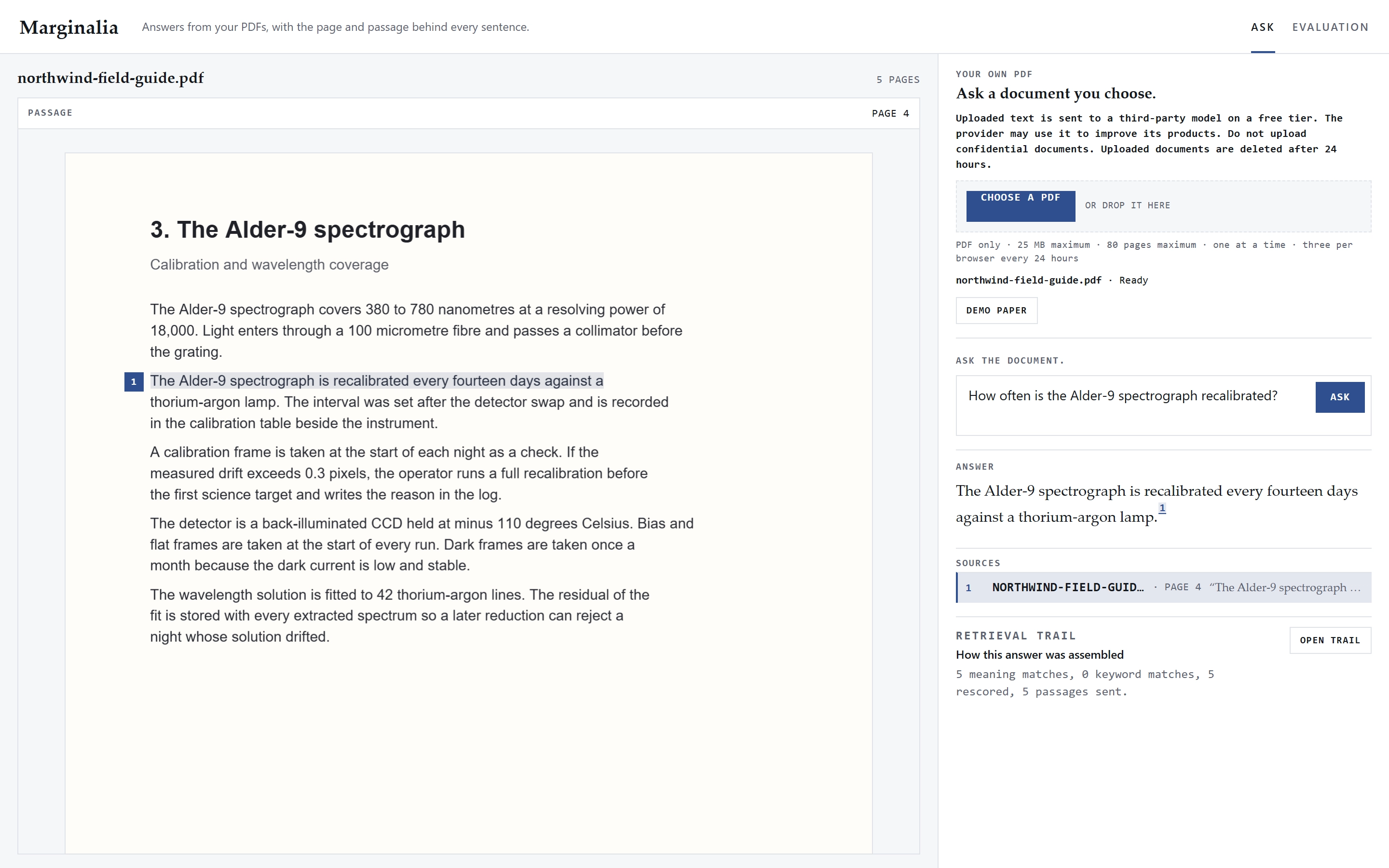

The uploaded Northwind Observatory field guide open on page 4: the Alder-9 recalibration sentence is highlighted with margin marker 1, and the matching source row names the uploaded file. — Uploaded field guide open on page 4: the Alder-9 recalibration sentence is highlighted with margin marker 1, and the source row names the uploaded file.

02 / The hard part

The hard part

A retrieval answer is easy to make plausible and hard to check. A claim can cite a passage outside the retrieved set, quote text outside the cited chunk, or survive a question the corpus holds no evidence for. The refusal path makes answers checkable.

03 / The decision

The decision

An uncited claim is dropped, not repaired

Decision Validate each claim against its citations, require a verbatim quote from the cited chunk, and drop it on either failure.

Rejected alternative Generate first, then attach the nearest passage; a citation added afterwards can miss the claim.

Cost The validator drops a reply whose quote is not a verbatim substring, so the answer rate is 15/24.

Evidence The citation tests cover the rejection path; the eval records answer rate and both citation rates.

04 / The failure it refuses

The failure it refuses

Pathological case

A fluent answer cites a passage outside the retrieved set, or quotes text outside the chunk it names.

Mechanism Every claim is validated against its citations: the passage must be in the retrieved context, and the quote a verbatim substring of that chunk. A claim that misses either check is dropped before the answer is returned; the refusal threshold is read from eval/calibration.json at boot.

05 / Measured

Measured

The keyed eval measured the five gates: recall@8 18/24, answer rate 15/24, refusal 6/6, citation precision 13/15 and faithfulness 12/15. The run took 710.3 s with 26 model requests, 0 retries and 0 rate limits. The hosted /ask answered in 27.5 s with a citation on page 8.

Measured results and the method behind each value.
Metric	Value	Method	Artifact
Retrieval recall@8, keyed production eval	18/24 (75.0%), Wilson 95% [55.1%, 88.0%]	bash scripts/live.sh eval; generator gemini-flash-lite-latest, embedder bge-small-en-v1.5, reranker ms-marco-MiniLM-L-6-v2 on ONNX CPU	`docs/EVAL.md`
Answer rate, keyed production eval	15/24 (62.5%), Wilson 95% [42.7%, 78.8%]	bash scripts/live.sh eval; generator gemini-flash-lite-latest on the keyed free tier	`docs/EVAL.md`
Unanswerable refusal, keyed production eval	6/6 (100.0%), Wilson 95% [61.0%, 100.0%]	bash scripts/live.sh eval over 6 unanswerable questions; threshold read from eval/calibration.json	`docs/EVAL.md`
Citation precision and faithfulness, rule-based	13/15 (86.7%) and 12/15 (80.0%), Wilson 95% [62.1%, 96.3%] and [54.8%, 93.0%]	bash scripts/live.sh eval; rule-based citation and quote checks, not a model judge	`docs/EVAL.md`
Production eval run cost	710.3 s · 30 questions · 26 model requests · 0 retries · 0 rate limits	bash scripts/live.sh eval; provenance.run in eval-report.json	`docs/ENV.md`
Hosted /ask contract	HTTP 200 · 27.5 s · chunk 128 · page 8	curl -X POST https://marginalia-api-4pvl.onrender.com/ask with the SBERT question; transcript in docs/PROOF.md	`src/docqa/api.py`

Invariants and their tests

Ingest refuses a chunk longer than 448 model tokens rather than storing a truncated vector. tests/test_chunking.py
A claim without an in-context citation, or whose quote is not a normalised substring of the cited chunk, is dropped. tests/test_citations.py
The refusal threshold comes from eval/calibration.json at boot and is never hand-tuned. tests/test_refusal.py
Every rate carries a Wilson 95% interval and its denominator; the eval records the earliest stage that produced no answer for each question. tests/test_eval.py
The judge model differs from the generator and is pinned by exact id; its reliability is recorded by the judge check. tests/test_judge_check.py
ONNX work runs in a worker thread behind Semaphore(2). tests/test_embedder.py

Artifacts
